J.W. Miller AM Crystal Tuner

This page contains a collection of information on the J.W. Miller AM Crystal Tuner. I am always looking for more information on these Tuners, if you have any information, please contact me by email at byrnsj@sbcglobal.net.

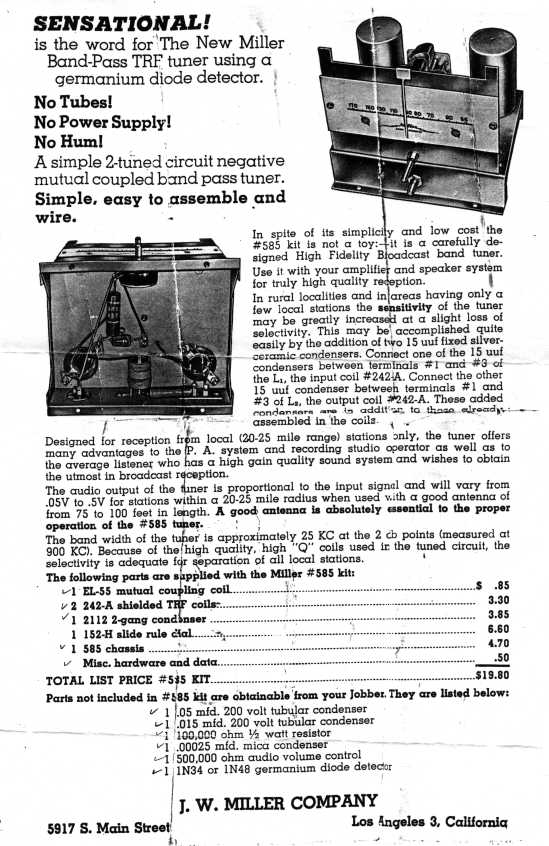

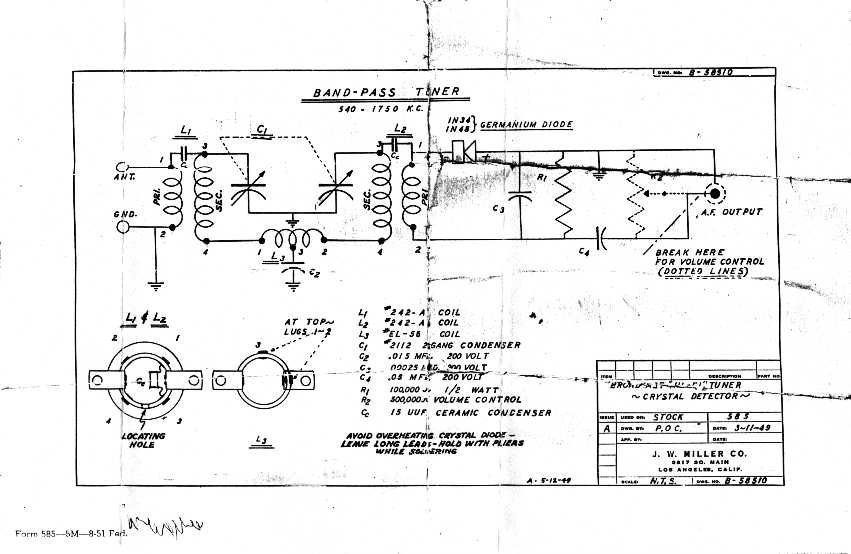

Here is the catalog page for the Miller 585 Tuner Kit and the schematic for the Miller 585.

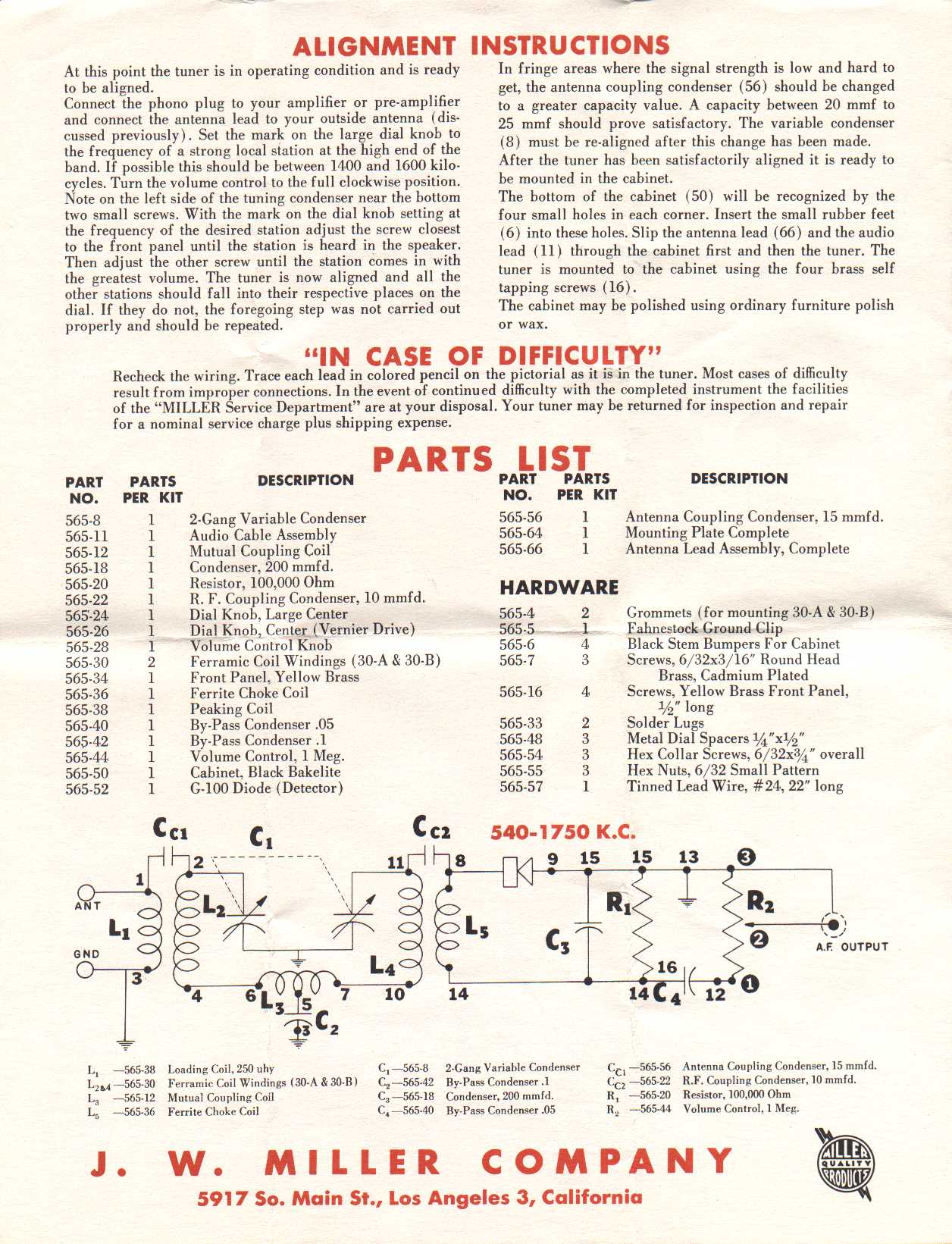

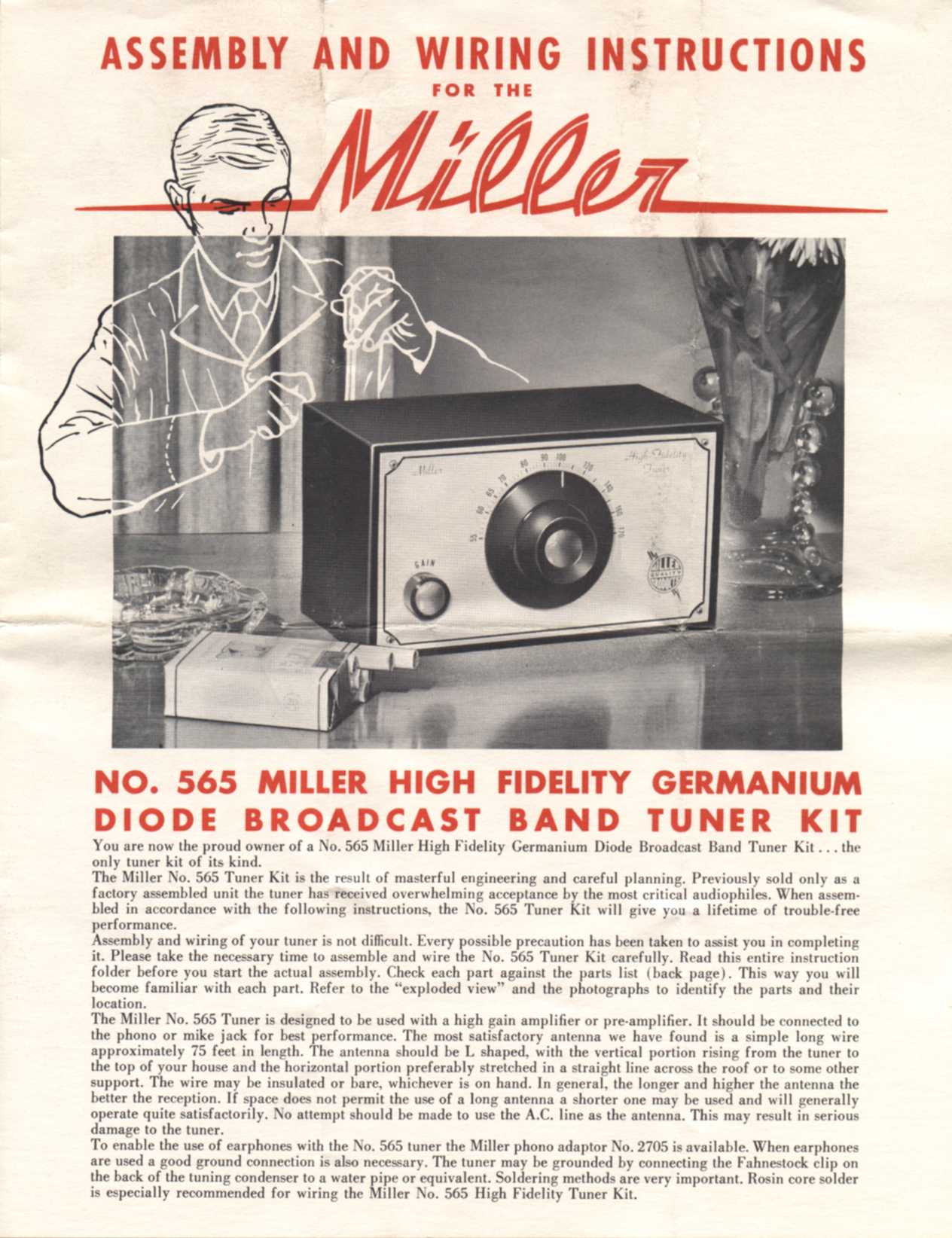

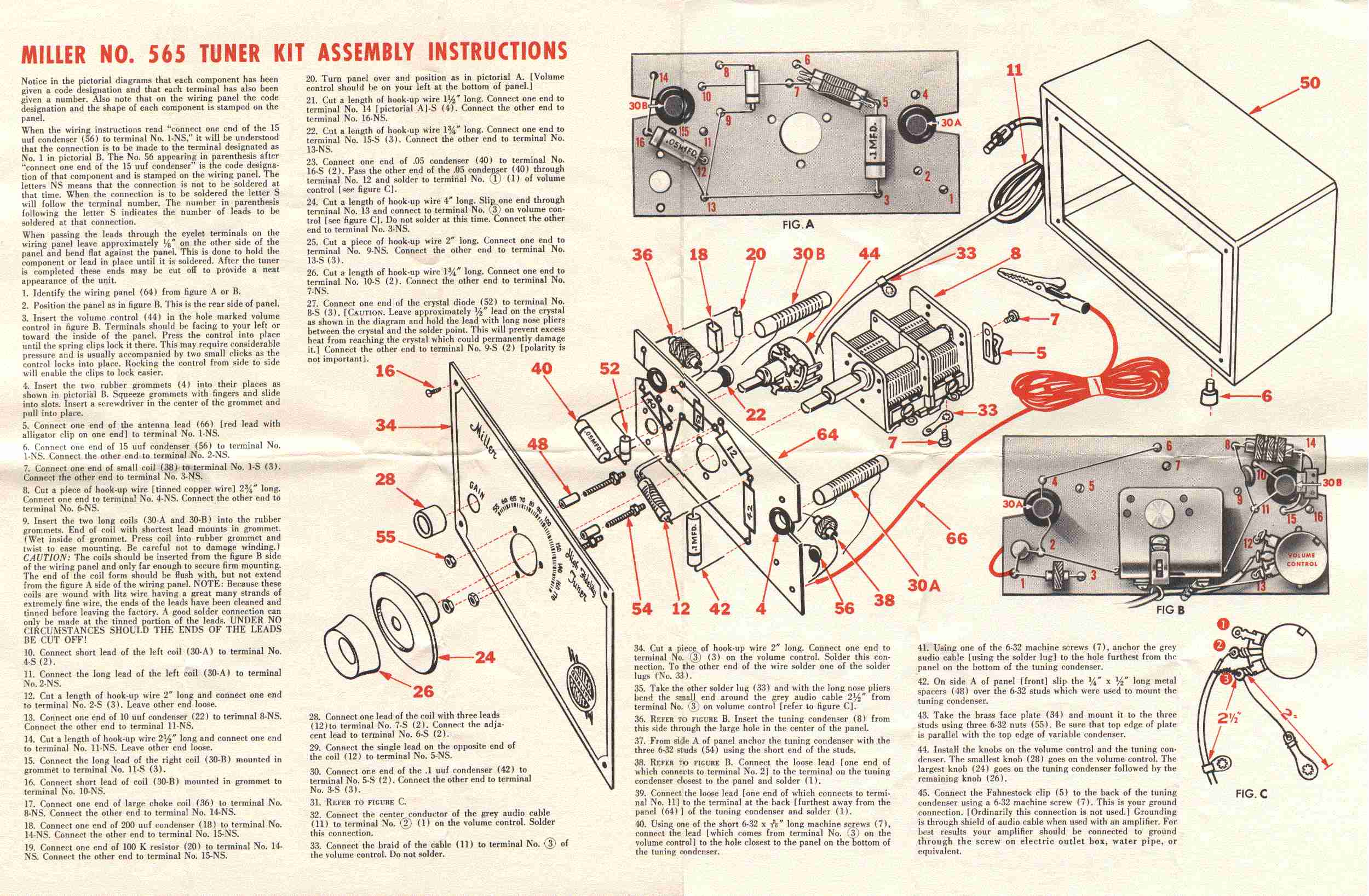

The following Alignment Instructions, Parts List, and Schematic for the "No. 565 Miller High Fidelity Germanium Diode Broadcast Tuner Kit", also apply to the very similar model 595 Tuner.

Caution: The following files are large, about a quarter megabyte each.
